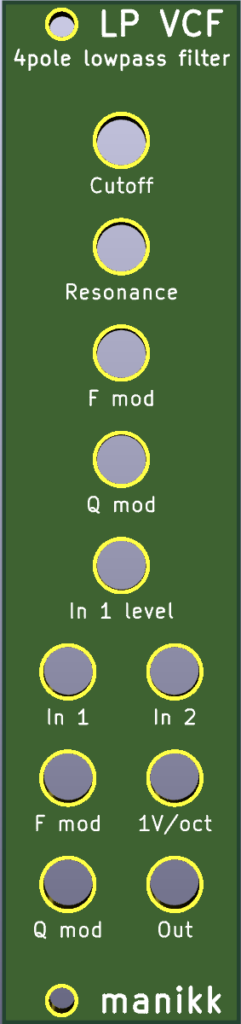

Lowpass VCF

Product status: Active

Small and compact voltage controller low pass filter with modulation inputs for both frequency and resonance.

Features

• Cutoff frequency with manual frequency knob and modulation CV input jack with amount knob.
• Resonance with manual resonance knob and modulation CV input jack with amount knob.
• Two audio input jacks, one with gain level knob.

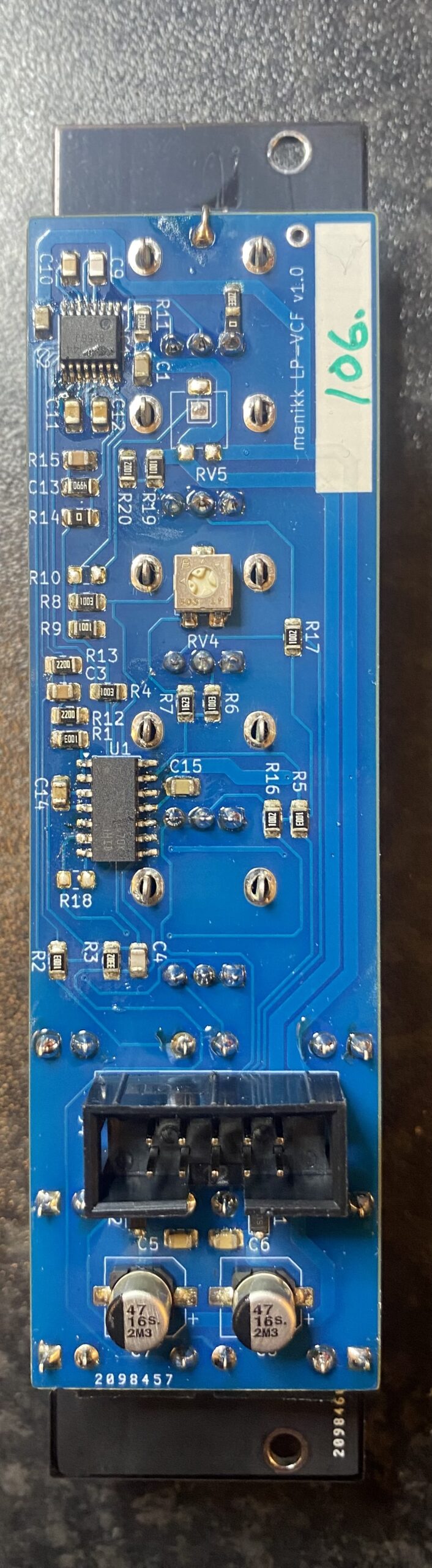

• 1V/octave CV input jack with trimpot on the backside.
• Filtered audio output jack.

Package contents

• 1 module
• 1 power cable
• 2 screws
• Cardboard box

Price

1,990 SEK

Technical specifications

Dimensions

Width: 6 HP
Depth: 21 mm

Current consumption

+12V: 10mA
-12V: 10mA
