Motion VCO

Product status: Planned

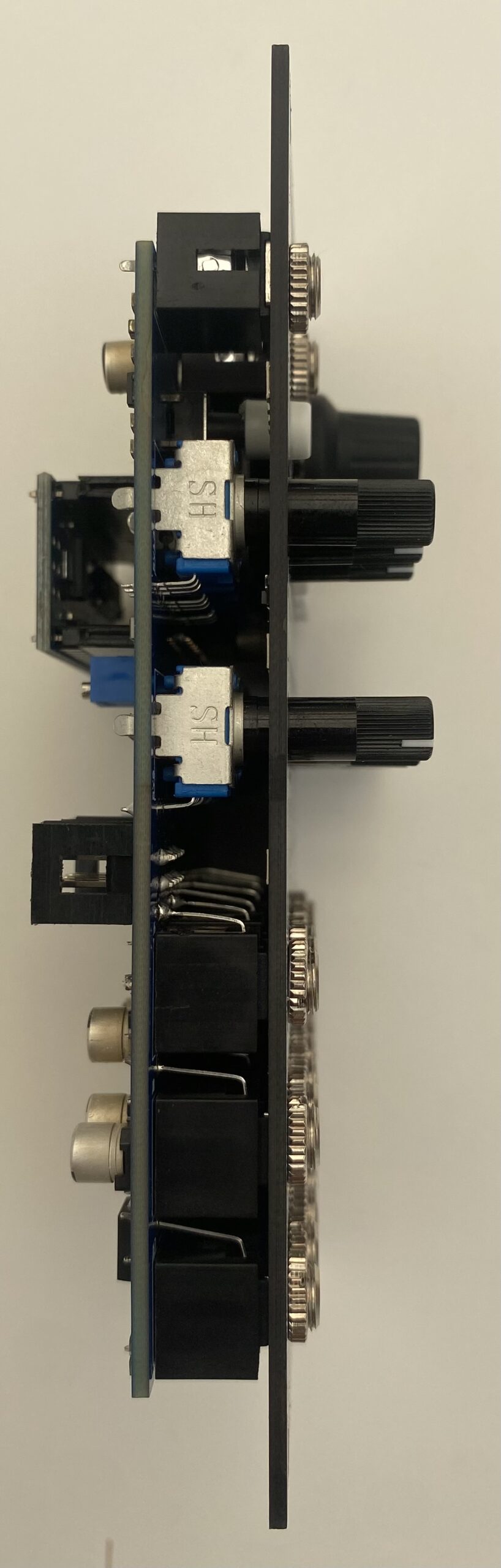

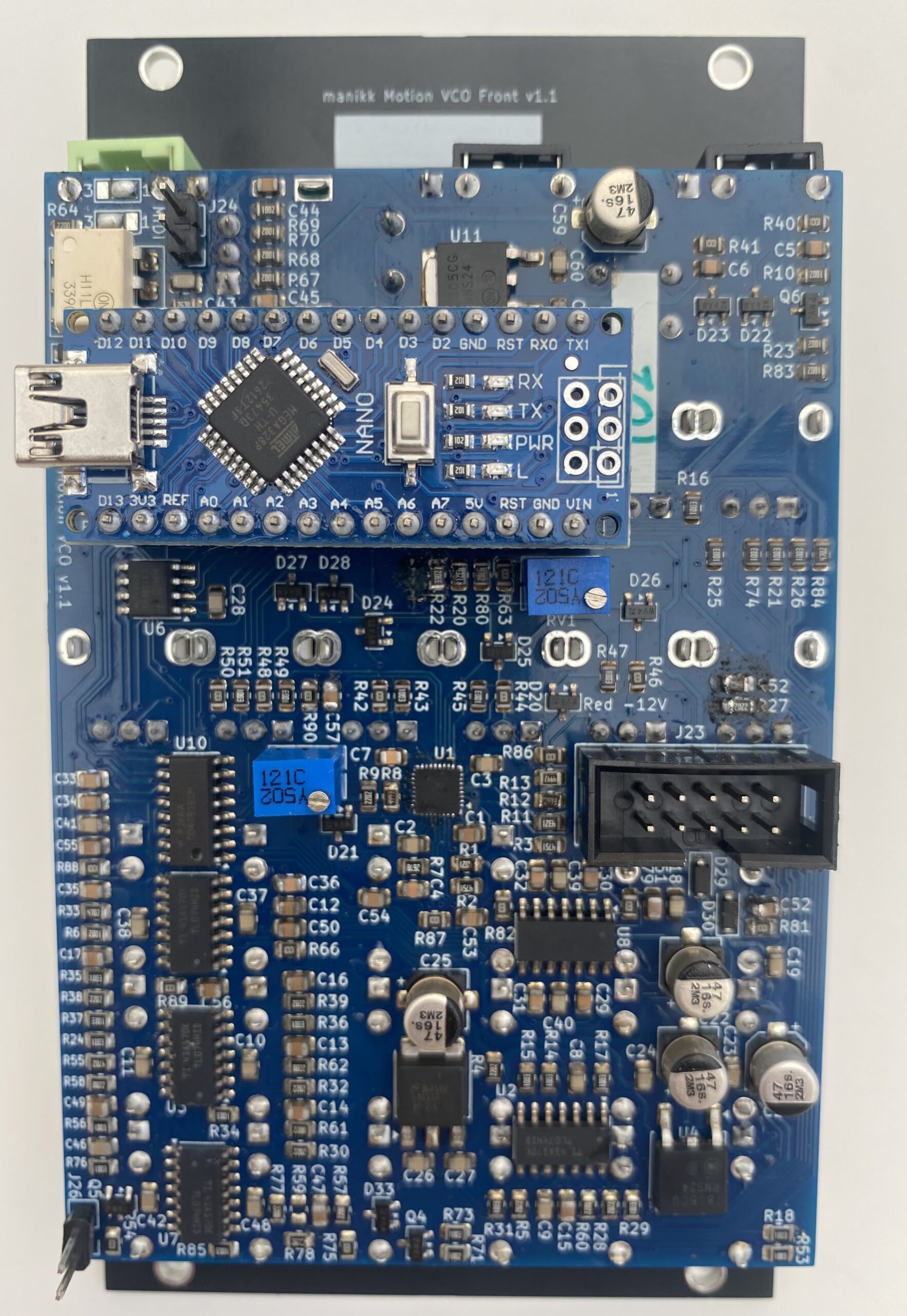

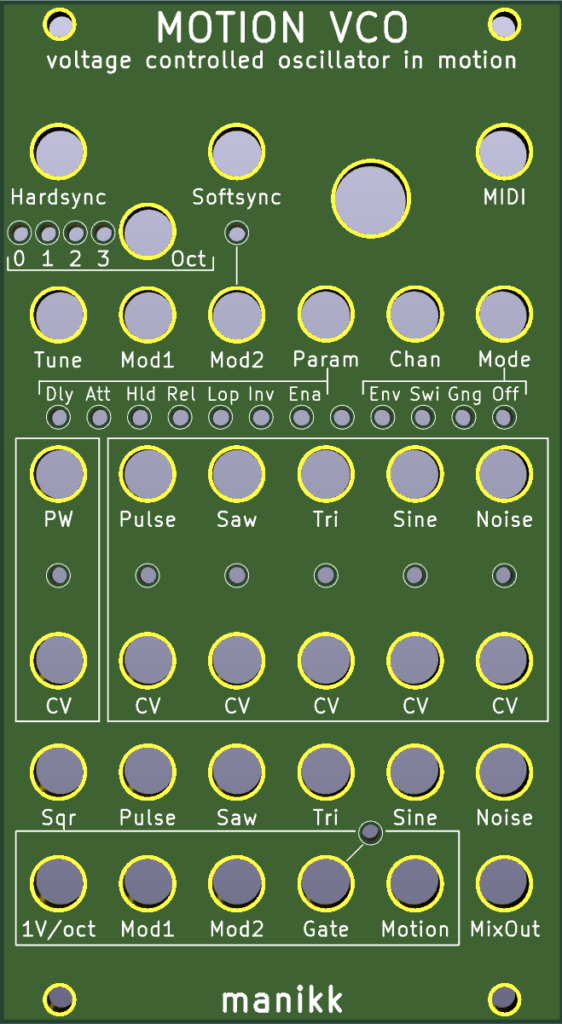

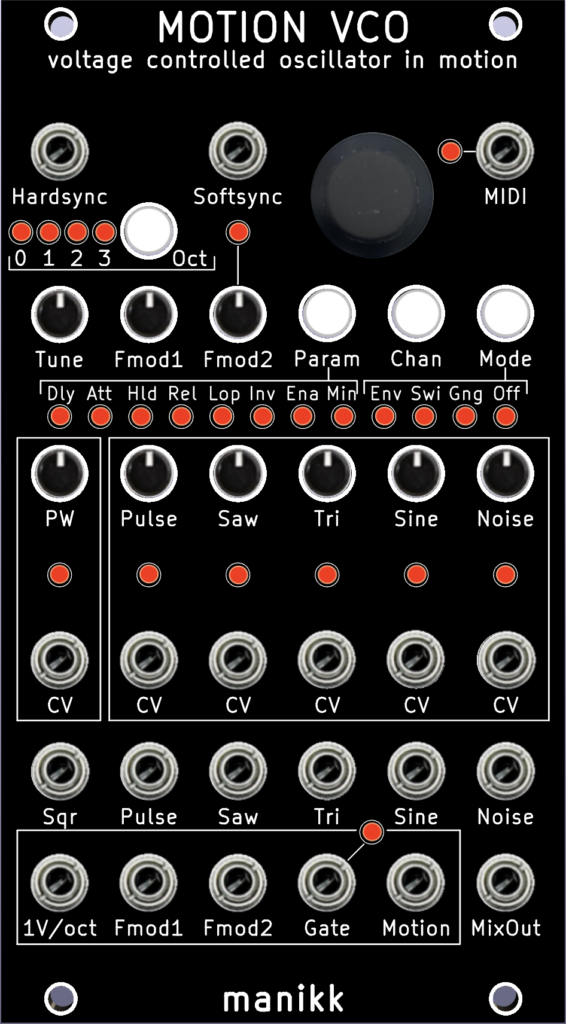

The frontpanel will be black with white text.

Voltage controlled oscillator with motion automation features

Main features

• Waveforms: Pulse/Square, Saw, Triangle, Sine and Noise.
• Individual outputs at full amplitudes and a mix output with cv controllable amplitudes.
• PW modulation input for the pulse waveform.
• Hardsync and softsync.
• MIDI controllable.
• Octave selector 0-3 and fine tune knob.
• Motion modes: Envelopes, Switch and Gang
• Mod1 and Mod2 inputs for frequency modulation, where Mod2 also can be controlled by motion modes.
• Gate input (0-5V) (or MIDI note) activates the motion
• Motion input (0-5V) controls the selected motion mode.
• 3 buttons and a rotary controller for adjusting the motion modes and parameters.
• Knobs for limiting the CV gain levels for mix amplitudes and motion automation.
• The CV jack are normalized to 5V or motion, but can be overridden by inserting patch cables in the CV jacks.

Motion controllable channels

• Pitch via Mod2
• PW – pulse width
• Pulse amplitude
• Saw amplitude
• Triangle amplitude
• Sine amplitude
• Noise amplitude

Motion parameters per channel

• Delay time before the envelope starts
• Attack time to reach max amplitude
• Hold time to stay on max amplitude
• Release time to reach back to minimum amplitude
• Loop the envelope as long as the gate signal is high, then exit with a Release
• Enable the channel to be part of the motion

Motion modes

• Env: The active channels are controlled by the envelopes as long as the gate input is active. The Motion input are not used.
• Swi: The active channels are switched on or off by the Motion input, like a selector.
• Gang: The active channels are ganged together and the amplitudes are controlled simultaneously by the Motion input.
• Off: No motion automation. All CV’s and knobs are used like if motion did not exist.

Price

4,990 SEK

Technical specifications

Dimensions

Width: 14 HP
Depth: 0 mm

Current consumption
