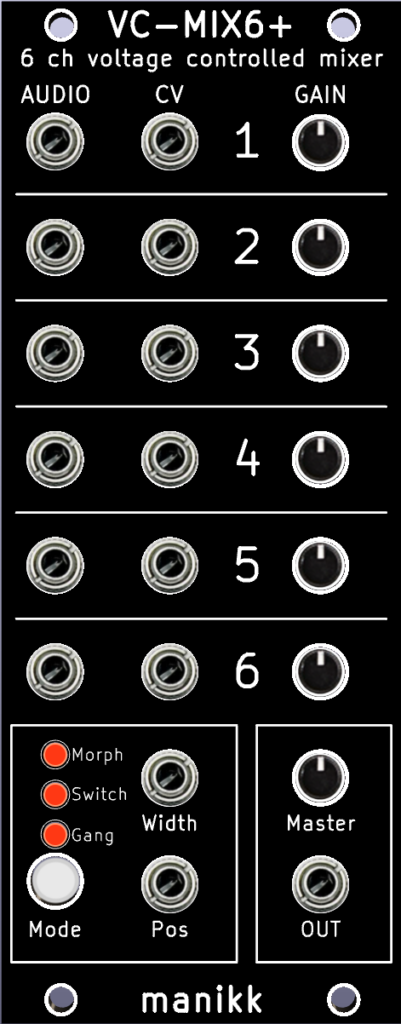

VC-MIX6+

Product status: Active

Voltage controller 6 channel audio mixer with motion features. Based on the simpler VC-MIX6, but with additional automation features.

• 6 channel voltage controlled mixer, with additional automation features.
• Each channel has ac-coupled audio input jack, CV control jack (0-5V) and gain knob.
• Master mix output jack with level knob.
• Six automation modes: Morph, Switch and Gang, with 2 versions of each.
• Width and Pos input jacks are used for the automation modes (max 10V).
• The working max voltage for the pos/width-inputs are configurable by the user by a long press on the mode button. Measures and stores the highest voltage during the configuration phase.
• By inserting a patch cable in any of the 6 CV-inputs, you can override any ongoing automation for that channel.

Automation modes:

• Morph (led lit): Pos morphs between the six channels 1 to 6 and Width sets how many channels that are active at the same time.
• Morph (blinks): Same as Morph above, but has also fade in and fade out, so the end positions are silent.
• Switch (led lit): Switches on channels requested by Pos and Width jacks. The other channels are turned off. Sharp switching, no fades.
• Switch (blinks): Same as Switch above, but has also a silent step to the far left/low position.
• Gang (led lit): All channels are controlled at once by the Pos jack. Width is not used.
• Gang (blinks): Only one channel is active at the time. The active channel is controlled by the Width jack. Pos sets the volume for the active channel. The other channels will have volume zero.

Package contents:

• 1 module
• 1 power cable
• 4 screws
• Cardboard box

Price

2,990 SEK

Technical specifications

Dimensions

Width: 10 HP
Depth: 29 mm

Current consumption

+12V: 75mA
-12V: 40mA

Additional files, images and videos

VC-MIX6+ - User manual
