VC-MIX6

Product status: Active

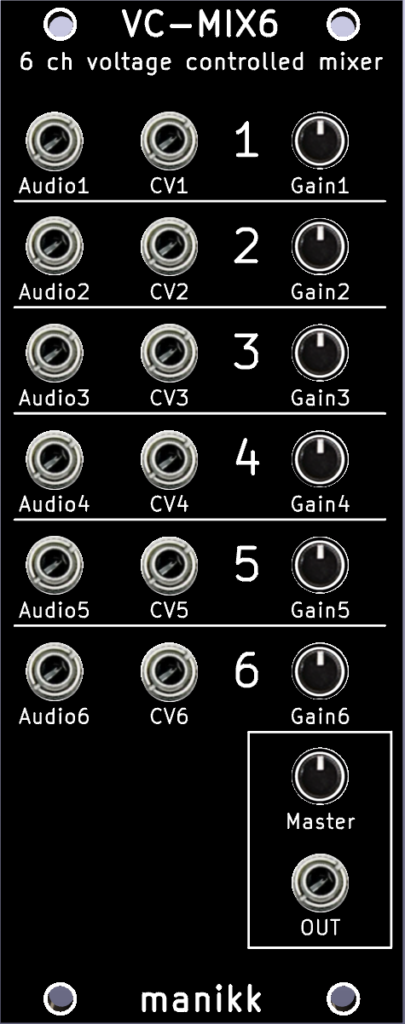

Voltage controlled 6 channel audio mixer.

• 6 channel voltage controlled mixer.
• Each channel has audio input jack (ac-coupled), CV control jack (0-5V) and gain knob.
• When no CV is inserted in the CV-jack, the knob functions as a manual volume control.
• Master mix output jack with master volume knob.

A more advanced version with automation can be found here.

Package contents:

• 1 module
• 1 power cable
• 4 screws
• Cardboard box

Price

2,490 SEK

Technical specifications

Dimensions

Width: 10 HP
Depth: 23 mm

Current consumption

+12V: 25mA
-12V: 25mA
